FOR COMMERCIAL USERS

CARGO SERIES

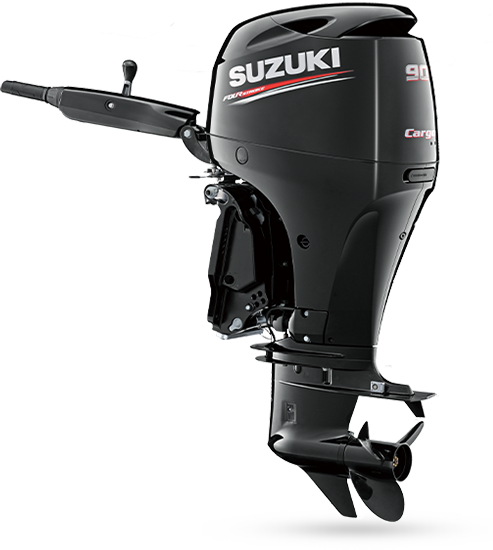

DF90AWQH

DF90AWQH

Suzuki’s first commercial series

GAS ASSIST + 4-STROKE ENGINE =
DEPENDABLE FRIEND FOR FISHERMEN

DF90AWQHX / DF90AWQHXX
MSRP*$00,000 / $00,000
  • Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.

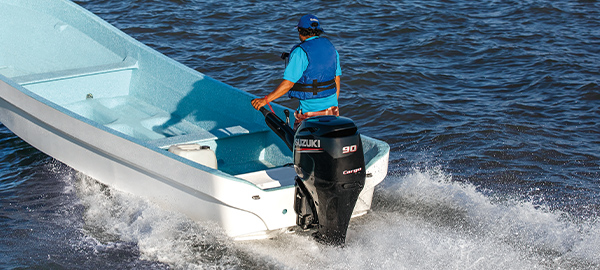

Picture of boat using DF90AWQH Picture of boat using DF90AWQH
CARGO SERIES ■Suzuki’s first commercial series ■Each model designed to fit the needs of commercial users ■Red stripe decal on side ■“Cargo” decal on back CARGO SERIES ■Suzuki’s first commercial series ■Each model designed to fit the needs of commercial users ■Red stripe decal on side ■“Cargo” decal on back

POWERFUL

  • Powerful Torque
  • Enable to use high Pitch Prop

FUEL EFFICIENT

  • Reduce Vibration
  • Excellent Fuel Efficiency

RELIABLE

  • High Durability Tilt-up
  • Prevent algae from Clogging up the water inlet
  • High Protect the Engine from Water in the Fuel
  • Protection Against Corrosion
  • Battery Chargable at Idle Speed

INNOVATIVE

  • Quick and Easy Trim up
  • Simplified Tiller Handle
  • Easy & Smooth Engine Start
Multi Point Sequential Electronic Fuel Injection
Off set Driveshaft
Two-Stage Gear Reduction System
Over-Rev. Limiter
Oil Change Reminder System
Low Oil Pressure Caution
Emergency Stop Switch
Fully Transistorized Ignition
Direct Ignition
Suzuki Easy Start System
Oil-Bathed Timing Chain
Start-in-Gear Protection
Gas Assisted Tilt
Streamed Gear Case
Anti-abrasion Water Pump Sleeve
Dual Freshwater Flushing Ports
Stainless Steel Propeller
Aluminum Propeller
Anti-Corrosion System
Sub Water Inlet

Code: ●=Standard Equip, ○=Optional Equip.

POWERFUL
  • GEAR RATIO
  • OFFSET DRIVESHAFT
RELIABLE
INNOVATIVE
  • GAS ASSIST SYSTEM

POWERFUL

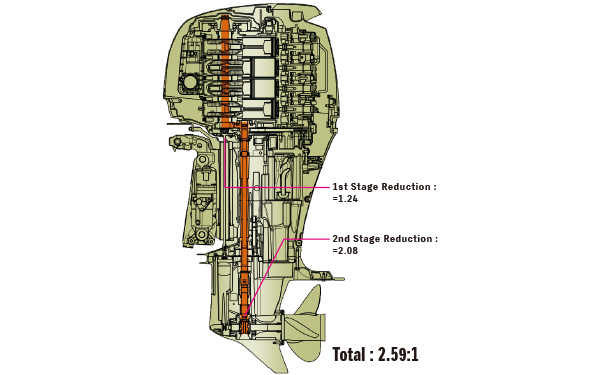

OFFSET DRIVESHAFT

  • Reduces vibration and outboard size
  • Improves steering stability
Diagram of OFFSET DRIVESHAFT

FUEL EFFICIENT

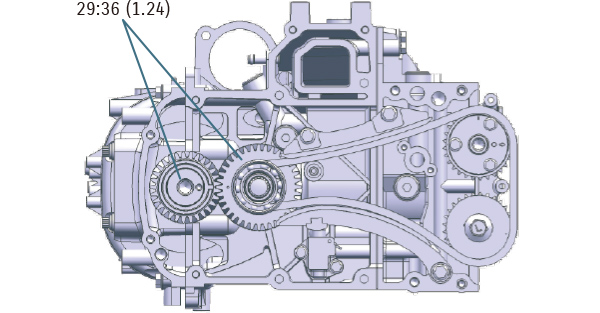

TWO-STAGE GEAR REDUCTION

  • Enables high torque
  • Maintains propeller rotation even when carrying heavy loads
Diagram of TWO-STAGE GEAR REDUCTION

EXCELLENT FUEL EFFICIENCY

  • Better fuel efficiency than 2-stroke engines
  • Improved fuel efficiency using the newly developed technology designed for professional use

RELIABLE

HIGH DURABILITY TILT-UP

  • Increased durability by using stainless rivet

SUB WATER INLET(OPTIONAL FUNCTION)

  • Prevents algae from clogging up the water inlets which causes the engine to overheat.

SUZUKI WATER DETECTION SYSTEM

  • Helps protect the engine from water in the fuel
  • Prevents poor combustion, lower power output, and corrosion

BATTERY CHARGEABLE AT IDLE SPEED

  • Long lasting battery and no need for battery charger

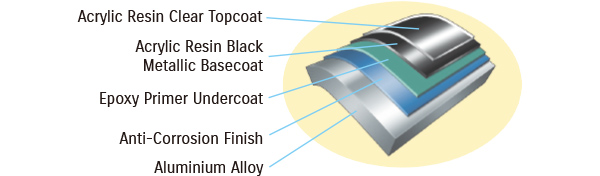

SUZUKI ANTI-CORROSION FINISH

  • Protection against corrosion helps increase the overall engine durability
Diagram of SUZUKI ANTI-CORROSION FINISH

INNOVATIVE

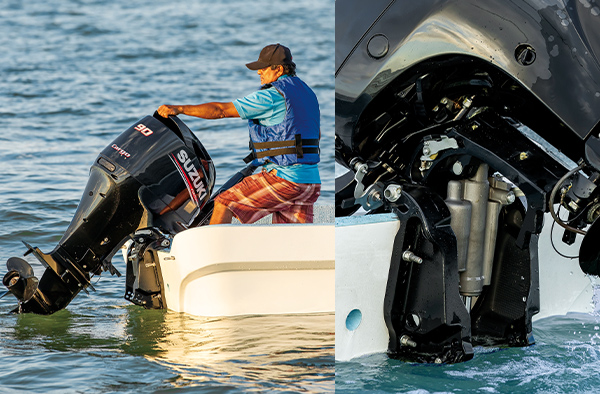

GAS ASSIST SYSTEM

  • Enables the outboard motor to be tilted up or down quickly with minimal force
  • First Suzuki 66.2kw (90ps) class outboard motor to have this feature
Picture of GAS ASSIST SYSTEM

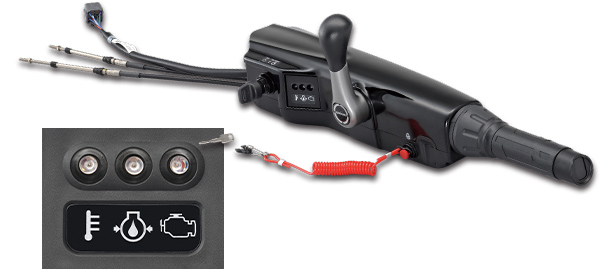

MULTI FUNCTION TILLER HANDLE(ADJUSTABLE 3 LEVELS)

  • Easy to use, simple tiller handle
  • Adjustable in 3 levels
Diagram of MULTI-FUNCTION TILLER HANDLE

SUZUKI EASY START SYSTEM

  • Starts the engine smoothing
ModelsDF90AWQH
SHAFT LENGTH mmL:508 (20”), X:635 (25”)
STARTING SYSTEMElectric
WEIGHT kg*L158, X162
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE X STROKE mm75 X 85
MAXIMUM OUTPUT kW (PS)66.2 (90)
FULL THROTTLE OPERATING RANGE rpm5,300–6,300
STEERINGTiller
OIL PAN CAPACITY Lit.4.3
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODGas Assisted Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)
All propellers are the 3-blade type
13” — 25”

*Dry weight: Including battery cable, not including propeller and engine oil.

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
