IN-LINE 4 140-70HP

DF100B / DF90A / DF80A / DF70A

DF100B/DF90A/DF80A/DF70A

A new standard in four-strokes from Suzuki.

DF100BX / DF100BXX
MSRP*$00,000 / $00,000
DF90AX / DF90AXX
MSRP*$00,000 / $00,000
DF80AX / DF80AXX
MSRP*$00,000 / $00,000
DF70AX / DF70AXX
MSRP*$00,000 / $00,000
  • Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.
Picture of boat using DF100B/DF90A/DF80A/DF70A Picture of boat using DF100B/DF90A/DF80A/DF70A

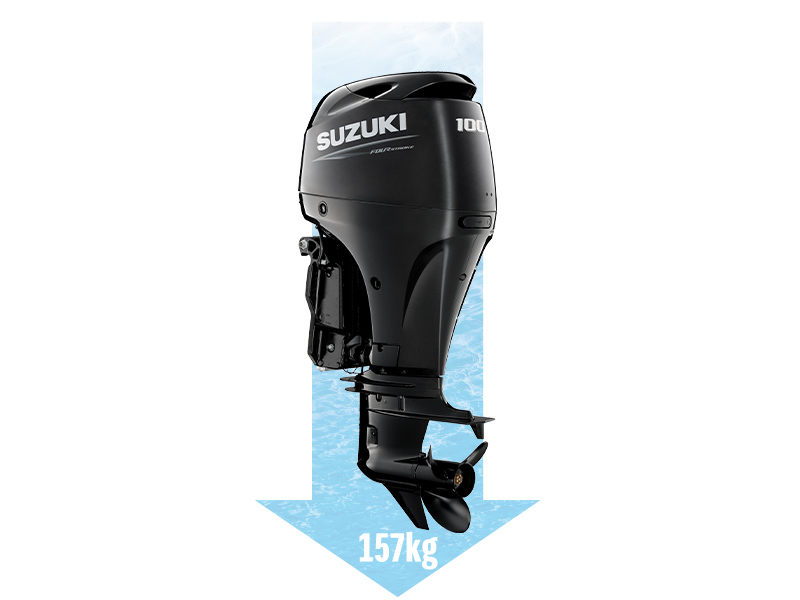

Overwhelmingly Light, Lightest in Class

L:157kg, the lightest weight in XXkW (100ps). (SUZUKI internal reserch)

Picture of Overwhelmingly Light, Lightest in Class

Compact

  • 100ps from a DF90A engine body
  • Offset drive shaft for compact body

The Largest Reduction Gear Ratio

2.59:1, the greatest reduction gear ratio in XXkW (100ps). (SUZUKI internal reserch)

Full Equipment

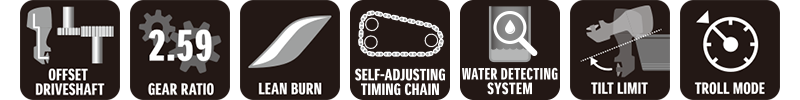

Diagram of Full Equipment
POWERFUL
  • GEAR RATIO
  • OFFSET DRIVESHAFT
FUEL EFFICIENT
  • LEAN BURN
RELIABLE
  • SELF-ADJUSTING TIMING CHAIN
  • WATER DETECTING SYSTEM
INNOVATIVE

POWERFUL

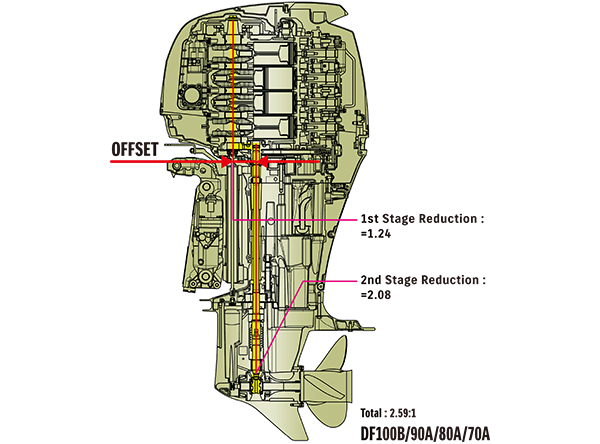

OFFSET DRIVESHAFT

EXPLANATION

The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.

ADVANTAGE

  • Less vibration
  • More compact engine
  • Stable steering performance
Diagram of OFFSET DRIVESHAFT

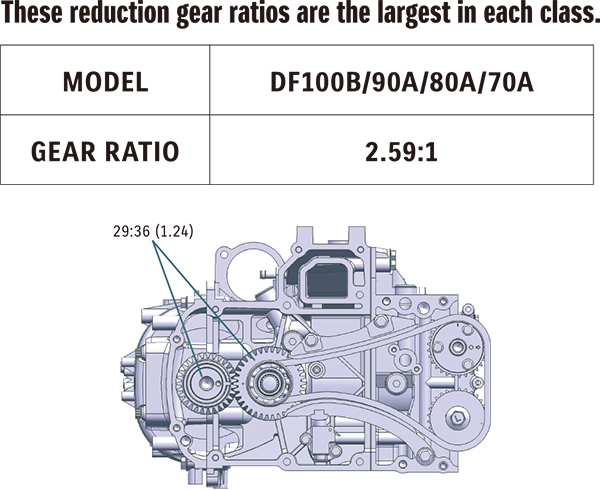

2-STAGE GEAR REDUCTION

EXPLANATION

This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing higher torque.

ADVANTAGE

  • High propulsive efficiency with large diameter propeller.
  • Powerful navigation, maintaining propeller rotation even with a larger load.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.
Diagram of 2-STAGE GEAR REDUCTION

FUEL EFFICIENT

LEAN BURN

EXPLANATION

The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.

ADVANTAGE

  • Significant improvement in fuel economy in all speed ranges especially at cruising speed.
  • Fuel costs can be saved thanks to improved fuel economy.
LEAN BURN

USER FRIENDLY

Suzuki Easy Start System

The Suzuki easy start system no longer require to hold the key until the engine start. Now simply turn the key and release and the starter will stay engaged until the engine starts.
The system also features more precise cylinder detection, fuel injection, and ignition control to deliver smoother and improved starts, more efficient combustion, and greater fuel economy making the outboard more environmentally friendly.

HIGH PERFORMANCE FEATURES

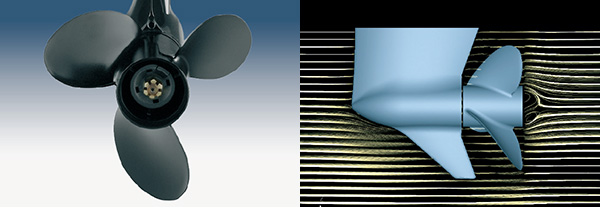

STREAMLINED GEAR CASE AND HIGHLY EFFICIENT PROPELLER

The lower gear case on all four outboard motors utilizes a hydrodynamic design. As the lower unit moves through the water its sleek form reduces drag by up to 36% compared to conventional designs, contributing to faster acceleration and increased speed.
Thanks to the powerful torque delivered with Suzuki’s two-stage gear reduction, these outboards can turn a large diameter propeller. Suzuki engineered a new highly efficient propeller that takes advantage of this torque to provide faster acceleration and higher top speed.

Picture of STREAMLINED GEAR CASE AND HIGHLY EFFICIENT PROPELLER

RELIABLE

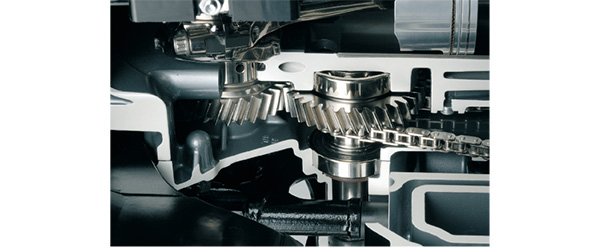

SELF-ADJUSTING TIMING CHAIN

EXPLANATION

The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.

ADVANTAGE

  • Higher durability compared to belt types.
  • Maintenance-free.
Picture of SELF-ADJUSTING TIMING CHAIN

WATER DETECTING SYSTEM (THIS EQUIPMENT IS ONLY FOR DF100B)

EXPLANATION

It helps protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.

ADVANTAGE

  • Can avoid water in fuel, which can lead to issues like poor combustion, lower power output and corrosion

SUZUKI'S ANTI CORROSION FINISH

Bonding the finish to the outboard’s alloy surface our specially formulated anti-corrosion finish has long been used as an effective treatment against corrosion and is found on all of our outboards.

Diagram of SUZUKI'S ANTI CORROSION FINISH

INNOVATIVE

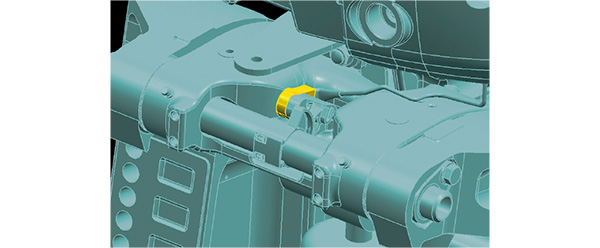

TILT LIMIT SYSTEM

EXPLANATION

A tilt limit system that prevents the outboard from tilting beyond a certain angle.

ADVANTAGE

  • Prevents damage to the boat or outboard due to excessive outboard tilting.
Diagram of TILT LIMIT SYSTEM

SUZUKI TROLL MODE SYSTEM (OPTIONAL EQUIPMENT)

EXPLANATION

A system that can move the boat at a constant speed.

ADVANTAGE

  • Boat can be moved at a constant speed without operating the throttle.
Picture of SUZUKI TROLL MODE SYSTEM (OPTIONAL EQUIPMENT)

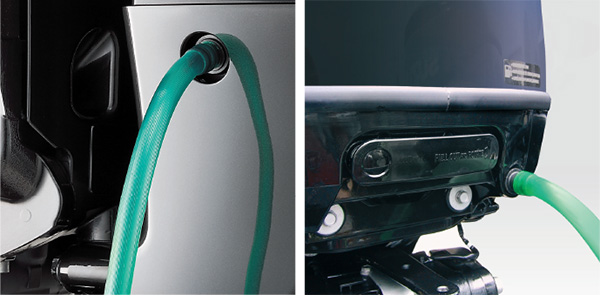

DUAL ENGINE FLUSH PORTS

Over time, salt, sand, and dirt build up can restrict flow in the cooling system causing damage. To help prevent such buildup, DF100B/90A/80A/70A are equipped with two freshwater flush ports that make flushing the cooling system much easier. With one port located on the port side of the down housing and a second on the front panel, you’ll always have easy access to the flushing system whether the boat is in or out of the water.

Picture of DUAL ENGINE FLUSH PORTS
MODELDF100B
RECOMMENDED TRANSOM HEIGHT mmL: 508, X: 635
STARTING SYSTEMElectric
WEIGHT kg*1L: 157, X: 161
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE ×STROKE mm75 x 85
MAXIMUM OUTPUT kW73.6
FULL THROTTLE OPERATING RANGE rpm5,700-6,300
STEERINGRemote
OIL PAN CAPACITY Lit.4.0
FUEL TANK CAPACITY Lit.25 (Optional)
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
13"-23"
MODELDF90A
RECOMMENDED TRANSOM HEIGHT mmL: 508, X: 635
STARTING SYSTEMElectric
WEIGHT kg*1L: 156, X: 160
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE ×STROKE mm75 x 85
MAXIMUM OUTPUT kW66.2
FULL THROTTLE OPERATING RANGE rpm5,300-6,300
STEERINGRemote
OIL PAN CAPACITY Lit.4.0
FUEL TANK CAPACITY Lit.25 (Optional)
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
13"-23"
MODELDF80A
RECOMMENDED TRANSOM HEIGHT mmL: 508, X: 635
STARTING SYSTEMElectric
WEIGHT kg*1L: 156, X: 160
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE ×STROKE mm75 x 85
MAXIMUM OUTPUT kW58.8
FULL THROTTLE OPERATING RANGE rpm5,300-6,300
STEERINGRemote
OIL PAN CAPACITY Lit.4.0
FUEL TANK CAPACITY Lit.25 (Optional)
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
13"-23"
MODELDF70A
RECOMMENDED TRANSOM HEIGHT mmL: 508, X: 635
STARTING SYSTEMElectric
WEIGHT kg*1L: 156, X: 160
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE ×STROKE mm75 x 85
MAXIMUM OUTPUT kW51.5
FULL THROTTLE OPERATING RANGE rpm5,000-6,000
STEERINGRemote
OIL PAN CAPACITY Lit.4.0
FUEL TANK CAPACITY Lit.25 (Optional)
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
13"-23"
  1. Dry Weight: Including battery cable, not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
